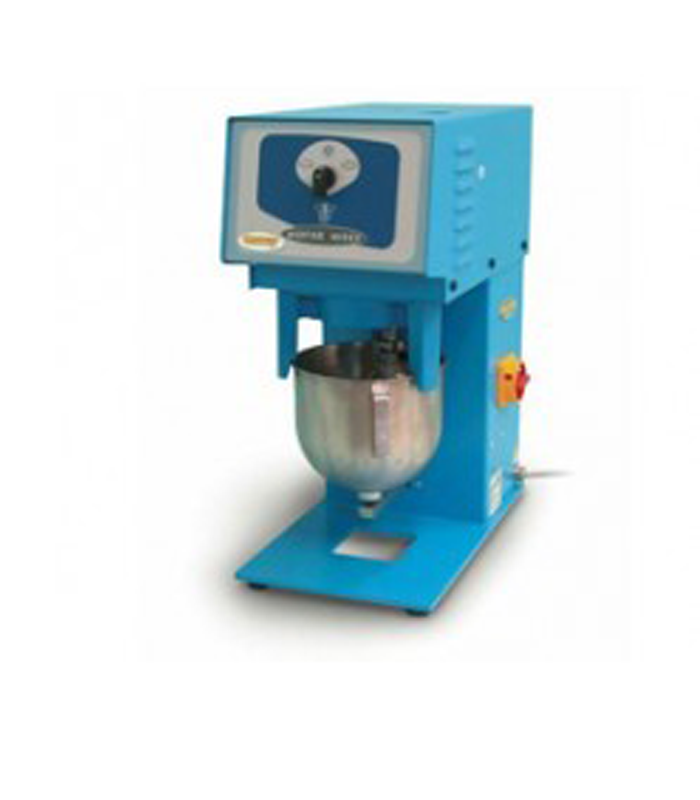

Mortar Mixer

Other Details:

It is used for mixing cement pastes, mortars and pozzolanas
The mixer consists of an epicyclical type stainless steel paddle imparting both planetary and revolving motion
Mixer has two speeds. Mixer blade has low speed of 140 + 5 rpm and medium speed of 285 + 10 rpm, while it also has a planetary movement of 62 + 5 rpm in low range and planetary movement of 125 + 10 rpm in medium range
Stainless steel bowl fitted with handle, fitted with lid made of non-absorbing material and not attacked by cement, masonry cement, cement pozzolana mixture or lime pozzolana mixture
The scraper consists of semi rigid rubber blade attached to a handle about 150 mm long
The blade about 75 mm long, 50 mm wide and tapered to a thin edge. Suitable for operation on 230 Volts, single phase

General Description & Specification:

Relevant Standard : IS : 4031, IS : 172
